Westminster Abbey plans
Yale University Press

I made these two plans of the Abbey and precincts for Yale’s history of the site, written in conjunction with Abbey Staff. Fitting the plans onto the book pages required careful consideration, so that the break between the left and right pages was no more intrusive than necessary. It proved possible to put the break across the same point in the Abbey on both plans.

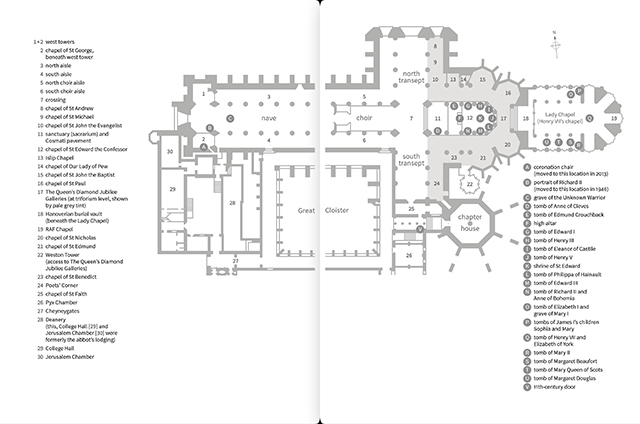

plan of Westminster Abbey

plan of Westminster Abbey precincts

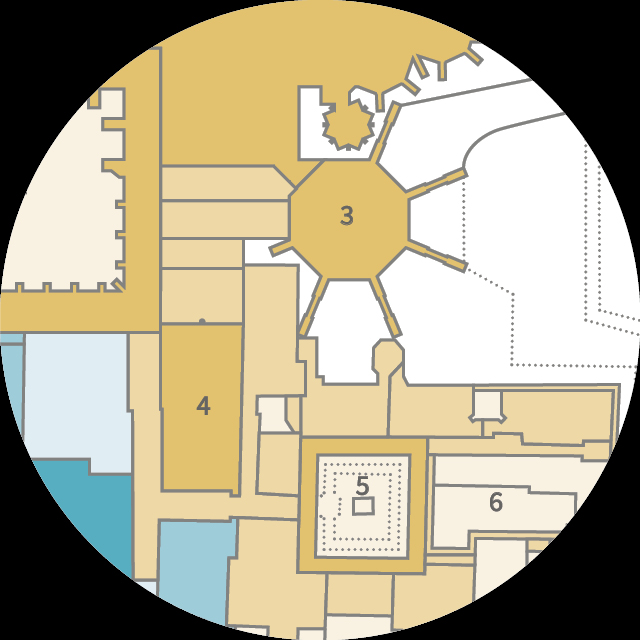

detail of plan of Westminster Abbey precincts
